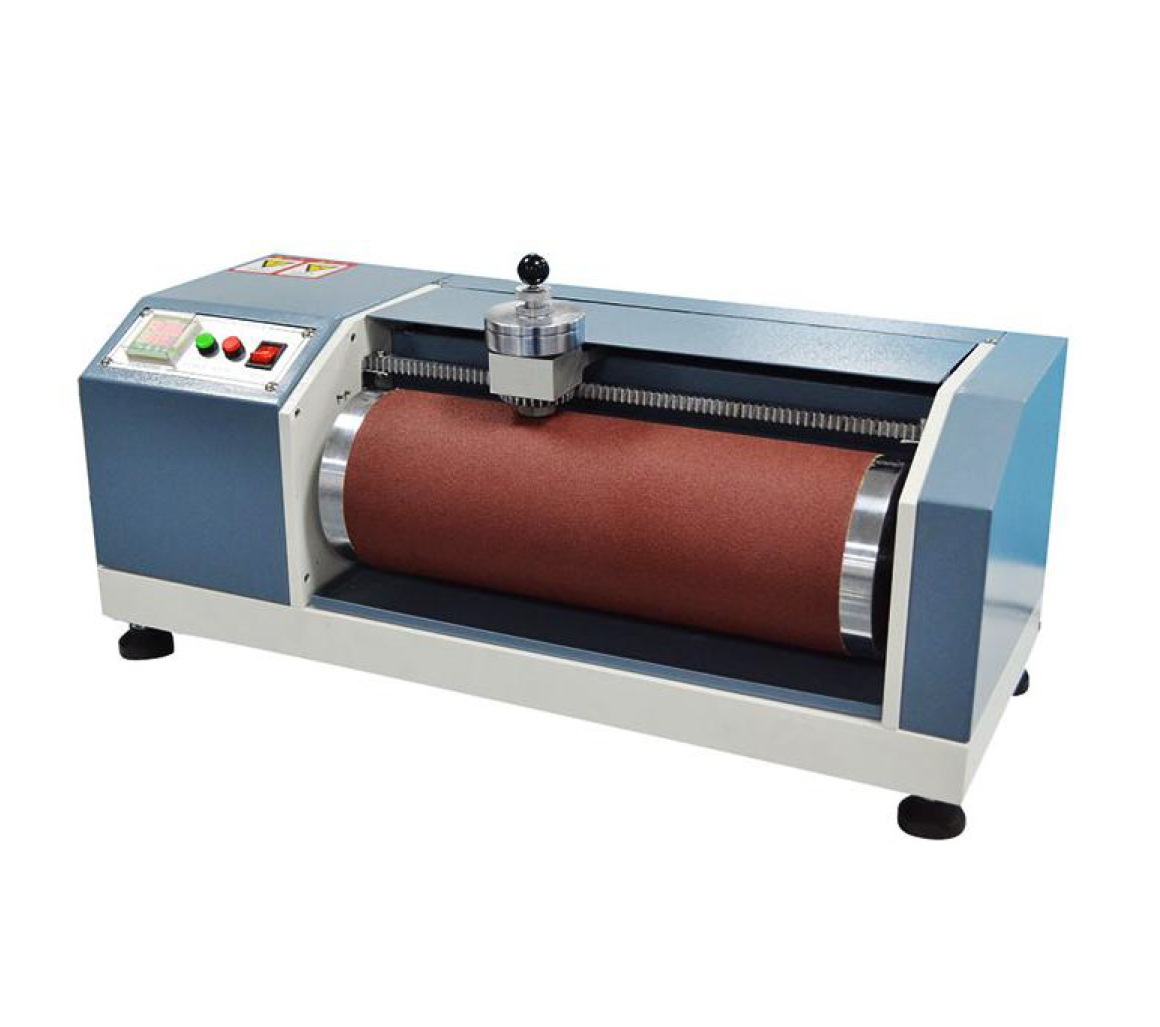

The DIN Abrasion Tester is a specialized instrument used to determine the abrasion resistance of vulcanized rubber, elastomers, and footwear sole materials. The test assesses the material’s volume loss when subjected to friction against a standardized abrasive sheet under controlled conditions.
Known for its reliability and precision, this tester is essential for rubber product manufacturers, shoe factories, and QC laboratories.
✨ Key Features
- Stable and uniform rotational test movement
- Precision load application for accurate abrasion measurement

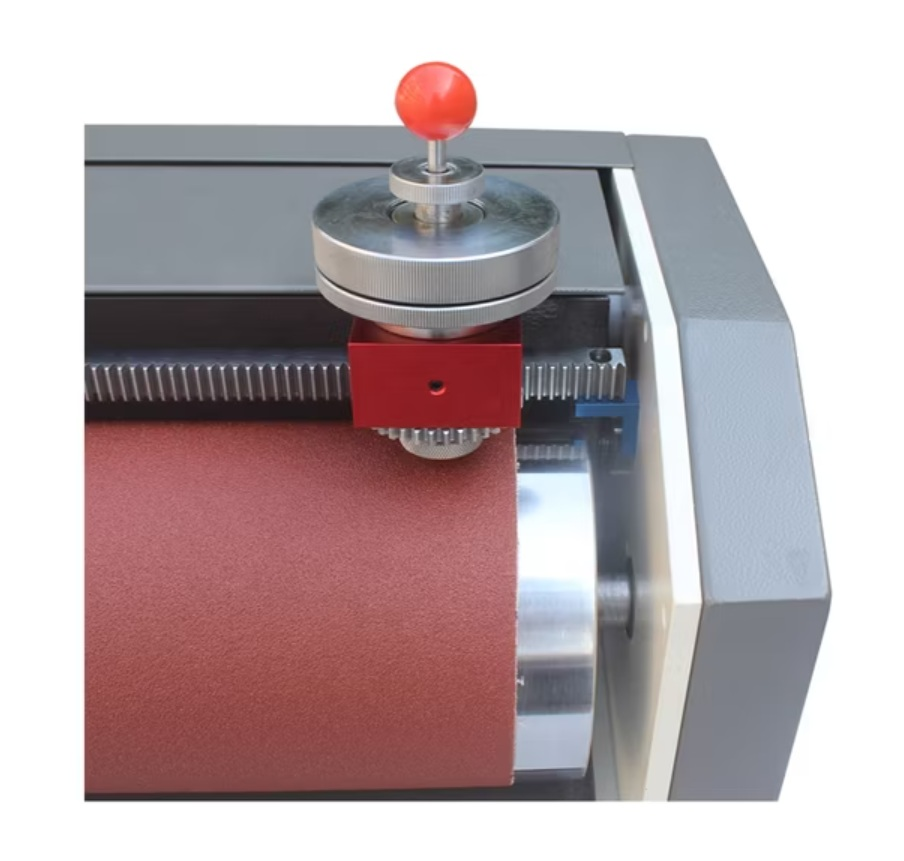

- High-quality abrasive sheet clamping design
- Adjustable specimen holder & test angle
- Includes counter to record abrasion cycles
- Rigid structure ensures low vibration and consistent performance
- Easy specimen mounting and testing procedure
- Conforms to DIN 53516 & ISO 4649 test requirements
🏭 Applications
- Rubber material abrasion testing
- Footwear outsole durability testing
- Elastomer quality evaluation
- R&D for rubber compounds and shoe materials
- Quality control in production environments
🧪 Materials Tested
- Vulcanized rubber
- Thermoplastic elastomers (TPE)
- Shoe soles and EVA foam
- Conveyor belt and industrial rubber goods
- Vehicle rubber components
📏 Test Standards / Compliance
This tester fully meets the following standards:
- DIN 53516 – Determination of abrasion resistance of rubber
- ISO 4649 – Rubber, vulcanized or thermoplastic — Determination of abrasion resistance
- ASTM D5963 – Standard test method for rubber abrasion resistance (optional compatibility)
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Abrasion Drum Diameter | 150 mm |
| Drum Rotation Speed | 40 ± 1 rpm |
| Abrasive Sheet Size | 400 × 400 mm |
| Load Applied | 2.5N, 5N, 10N |
| Specimen Size | Ø16 mm × 6–10 mm height |
| Abrasion Angle | 45° |
| Counter | Digital revolution counter |
| Power Supply | AC 220V, 50/60 Hz |
| Machine Frame | Heavy-duty steel base |
📦 What’s Included
- DIN Abrasion Tester main unit
- Standard abrasive sheet
- Specimen holder & loading lever
- Cleaning brush
- Power cable
- Calibration certificate & user manual
🛠️ Options & Accessories
| Option / Accessory | Description |
|---|---|
| Additional Abrasive Sheets | For continuous testing needs |
| Vacuum Dust Collector | For clean testing environment |
| Precision Weighing Balance | For volume loss calculation |
| Specimen Cutting Die | For preparing Ø16 mm test specimens |
| Calibration Kit | For periodic machine verification |
🔍 Sample Requirements
- Specimen dimensions must follow DIN/ISO standard
- Samples should be flat, clean, and conditioned
- Avoid oil, moisture, or dust contamination
- Ensure proper surface preparation before mounting
❓ Frequently Asked Questions (FAQs)
Q1: What does the DIN abrasion test measure?
It measures volume loss of rubber under controlled abrasion, indicating durability.
Q2: Can this tester be used for shoe soles?
Yes, it is commonly used by footwear manufacturers for outsole durability rating.
Q3: Is calibration required?
Yes, it should be calibrated periodically to maintain testing accuracy.
Q4: What abrasive sheet should be used?
Standard sandpaper (specified by ISO/DIN) must be used for valid results.
