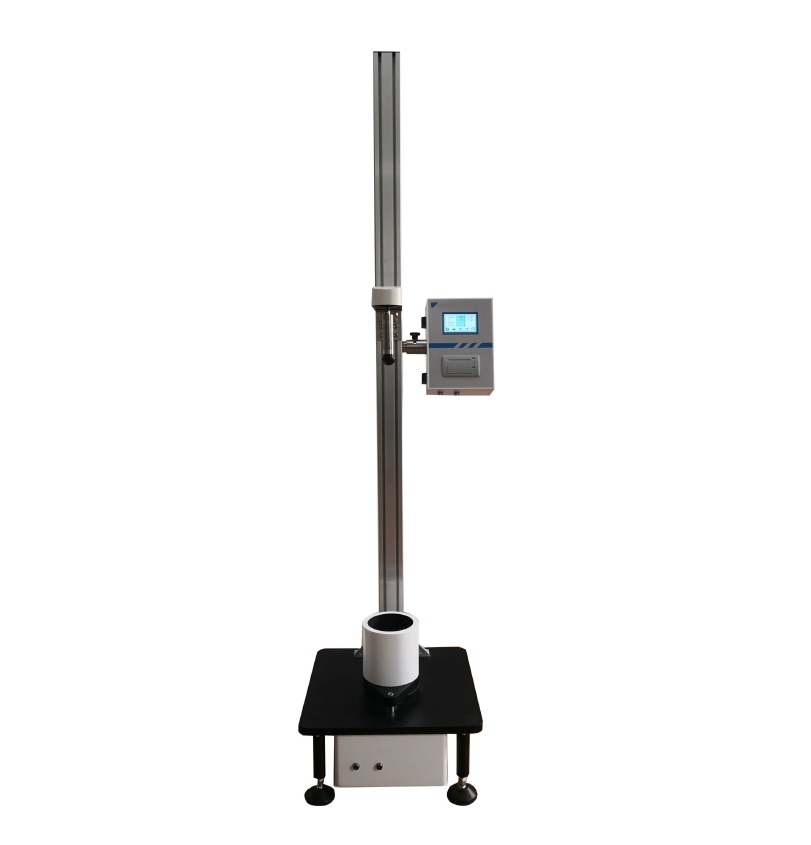

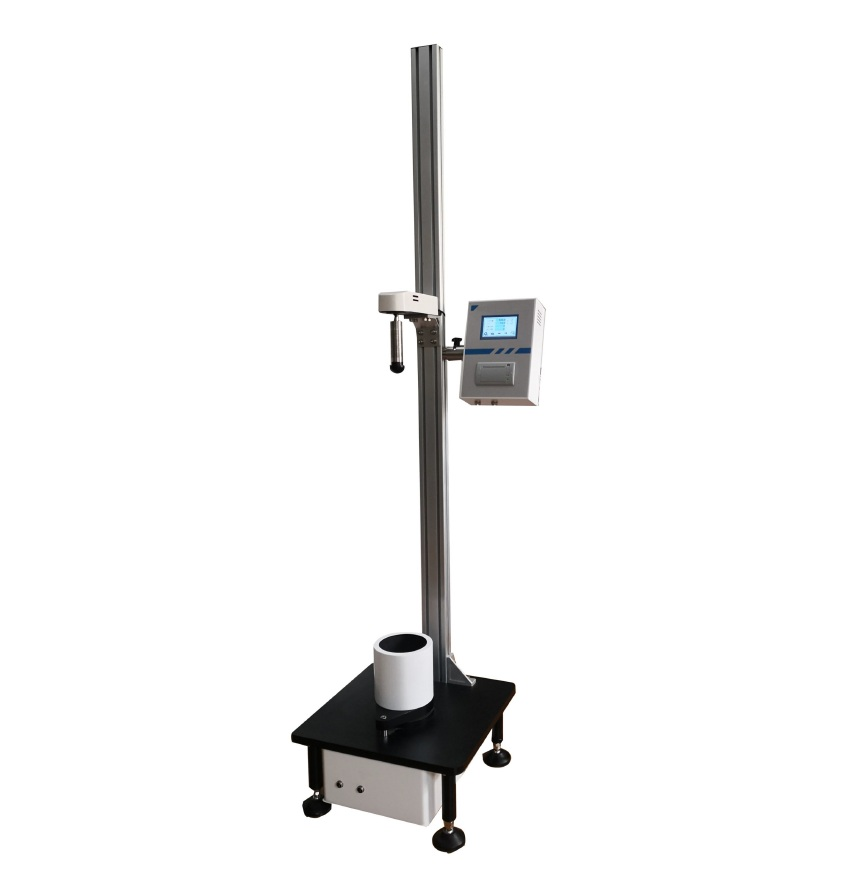

The Drop Dart Impact Tester is designed to determine the impact resistance of plastic films, sheets, and packaging materials by dropping a free-falling dart from a specified height. It accurately evaluates material toughness and failure characteristics under sudden impact, making it essential for packaging manufacturers, film converters, and quality control laboratories.
With adjustable drop heights, precision-guided release mechanisms, and multiple dart weights, this tester ensures repeatable, stable, and standard-compliant results.
⭐ Key Features
- Adjustable drop height for various test requirements
- Precision dart release mechanism for consistent drops
- Interchangeable dart heads and weight sets
- Transparent safety shield for operator protection
- Rugged frame for stable operation

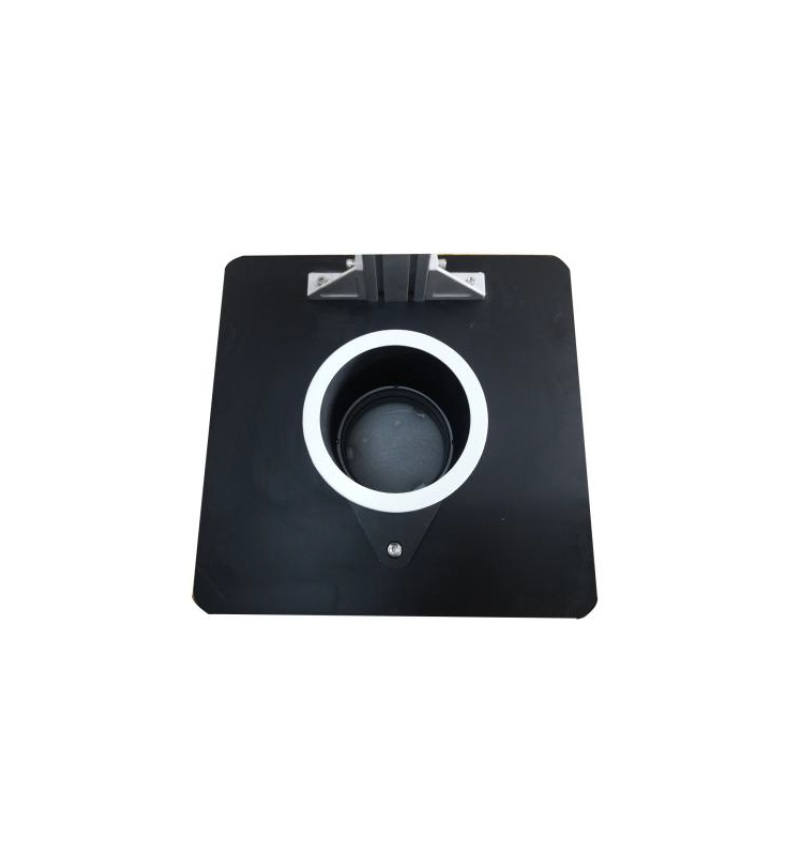

- Easy-to-clamp film sample fixture
- Supports both Method A & Method B testing
- Complies with international standards
🎯 Applications
- Plastic films & bags
- Flexible packaging materials
- Laminated films
- PE, PP, PVC, PET films
- Agricultural films
- Industrial wrapping materials
🧪 Materials Tested
- Polyethylene films (LDPE, LLDPE, HDPE)
- Polypropylene films
- Multilayer films
- Flexible laminates
- Packaging roll materials
📏 Test Standards
- ASTM D1709 – Free-Falling Dart Impact Test
- ISO 7765-1 – Dart Drop Impact Resistance
- GB/T 9639.1 – Impact resistance of plastic films
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Test Method | Method A & Method B |
| Drop Height | 660 mm or 1,520 mm |
| Dart Head Types | Type A (38 mm) / Type B (50 mm) |
| Weight Range | Up to 2,000 g (with modular weights) |
| Release Mechanism | Electromagnetic |
| Sample Clamp | Pneumatic |
| Safety | safety lock |
| Power Supply | AC 220V / 50–60Hz |
🎁 What’s Included
- Drop Dart Impact Tester main frame
- Dart heads (Type A & B)
- Complete dart weight set
- Sample clamping fixture
- User manual
🔧 Options & Accessories
- Extra weight blocks
- Digital control upgrade
- Pneumatic sample clamp
- Height extension column
- Safety-enhanced enclosure
📄 Sample Requirements
- Flat plastic films or sheets
- Standard conditioning before testing
- Minimum sheet size adequate for clamping area
- Thickness typically ≤1 mm (depending on standard)
❓ FAQs
1. Which industries use this tester?
Packaging, film manufacturing, converters, and QC labs.
2. What’s the difference between Method A & B?
• Method A: 38 mm dart head
• Method B: 50 mm dart head
3. Can it test multilayer films?
Yes — suitable for single-layer and multilayer flexible films.
4. Is the drop height adjustable?
Yes, depending on the model configuration.
5. Is calibration included?
Yes, a calibration certificate provided
