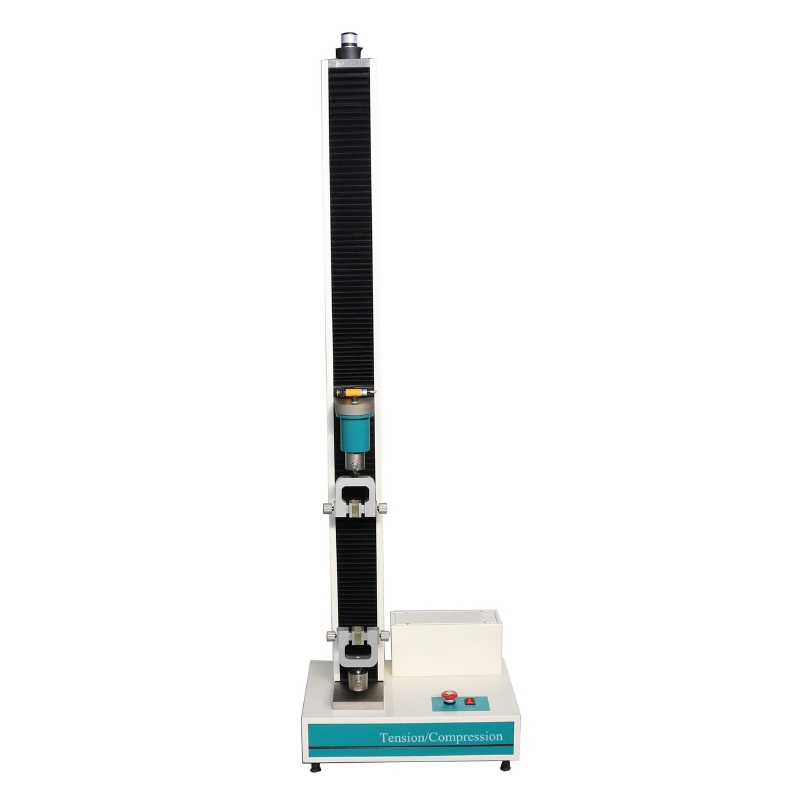

The Tensile Tester, also known as a Universal Testing Machine (UTM), is designed to evaluate the mechanical properties of materials under tension, compression, and bending. It delivers precise force and displacement measurement through a high-resolution load cell, servo motor drive, and advanced control software.
Suitable for a wide range of industries, this tester ensures highly repeatable results for R&D, production QC, and material certification processes.
⭐ Key Features
- High-precision load cells (various capacities available)
- Servo or stepper motor system for smooth, stable testing
- Wide speed control range
- Automatic calculation of tensile strength, elongation, modulus, yield point
- Digital crosshead displacement measurement
- Multiple test modes: tensile, compression, peeling, tearing
- Interchangeable grips for different sample types
- Real-time graphing & advanced software (optional)
- Overload protection & safety limit switches
- Compliance with ISO, ASTM, TAPPI standards
🧪 Applications
- Plastics & polymer films
- Rubber & elastomers
- Paper, board & packaging
- Adhesive tapes (peel strength)
- Textiles & yarn
- Foam & sponge
- Wires & cable insulation
- Biomaterials & composites
📦 Materials Tested
- PET, PE, PP, PVC, ABS
- Rubber sheets and O-rings
- Kraft paper, corrugated board samples
- Adhesive tapes
- Laminated packaging materials
- Textile fabrics and fibers
📏 Test Standards
- ASTM D638 – Tensile properties of plastics
- ISO 527 – Plastics tensile testing
- ASTM D882 – Thin plastic films
- ASTM D412 – Rubber tensile
- TAPPI T494 – Tensile strength of paper
- ISO 1924 – Paper tensile properties
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Load Cell Capacity | 100 N – 5 kN (selectable) |
| Accuracy | ±1% of reading |
| Crosshead Speed | 0.1 – 500 mm/min |
| Speed Accuracy | ±1% |
| Stroke Length | 600–800 mm |
| Display | LCD / touchscreen / PC software |
| Grips | Tensile grips for film, paper, plastic |
| Data Output | USB / RS232 / PC software |
| Power Supply | AC 220V / 50–60Hz |
🎁 What’s Included
- Tensile tester main unit
- Load cell (according to selected capacity)
- Standard tensile grips
- Software (optional)
- Power cable
- User manual
- Calibration certificate
🔧 Options & Accessories
- Compression plates
- Three-point bending fixture
- Peel test grips (90° / 180°)
- Pneumatic grips
- High-capacity load cells
- Temperature chamber
- Extensometer (contact or non-contact)
- Paper & film sample cutter
📄 Sample Requirements
- Flat, uniform specimens
- Prepared according to ASTM/ISO standards
- Films typically 15–100 microns
- Plastics machined to standard dumbbell shape
- Papers conditioned under 23°C / 50% RH
❓ FAQs
1. What load cell capacity should I choose?
• 500–1000N for films & paper
• 1–2 kN for plastics
• 5 kN for harder materials
2. Can this test more than tensile?
Yes—compression, bending, tearing, and peel (with the right fixtures).
3. Does it require software?
The built-in screen is enough for basic tests, but software is recommended for full data analysis.
4. How often is calibration needed?
Typically once a year or after load cell replacement.
