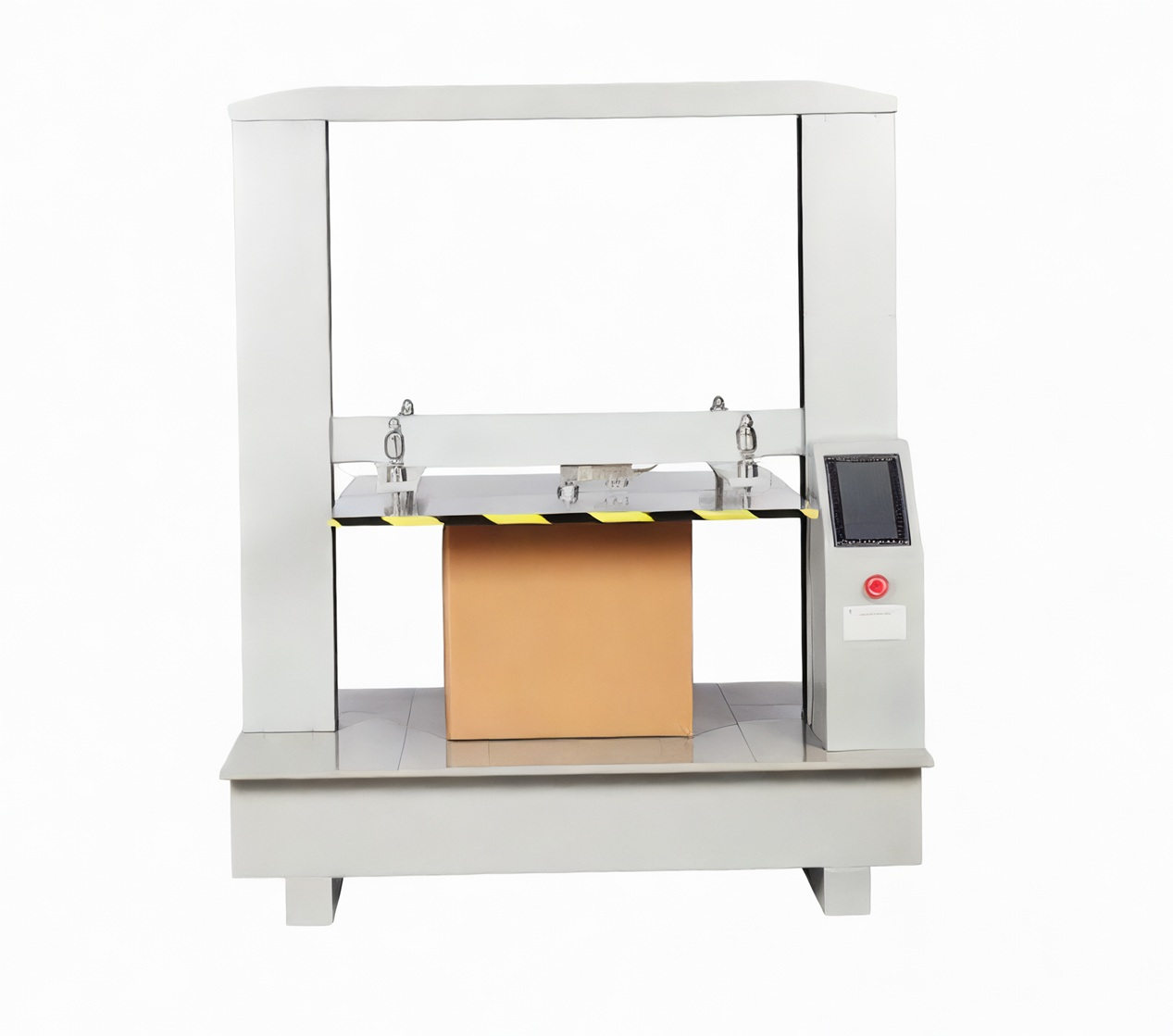

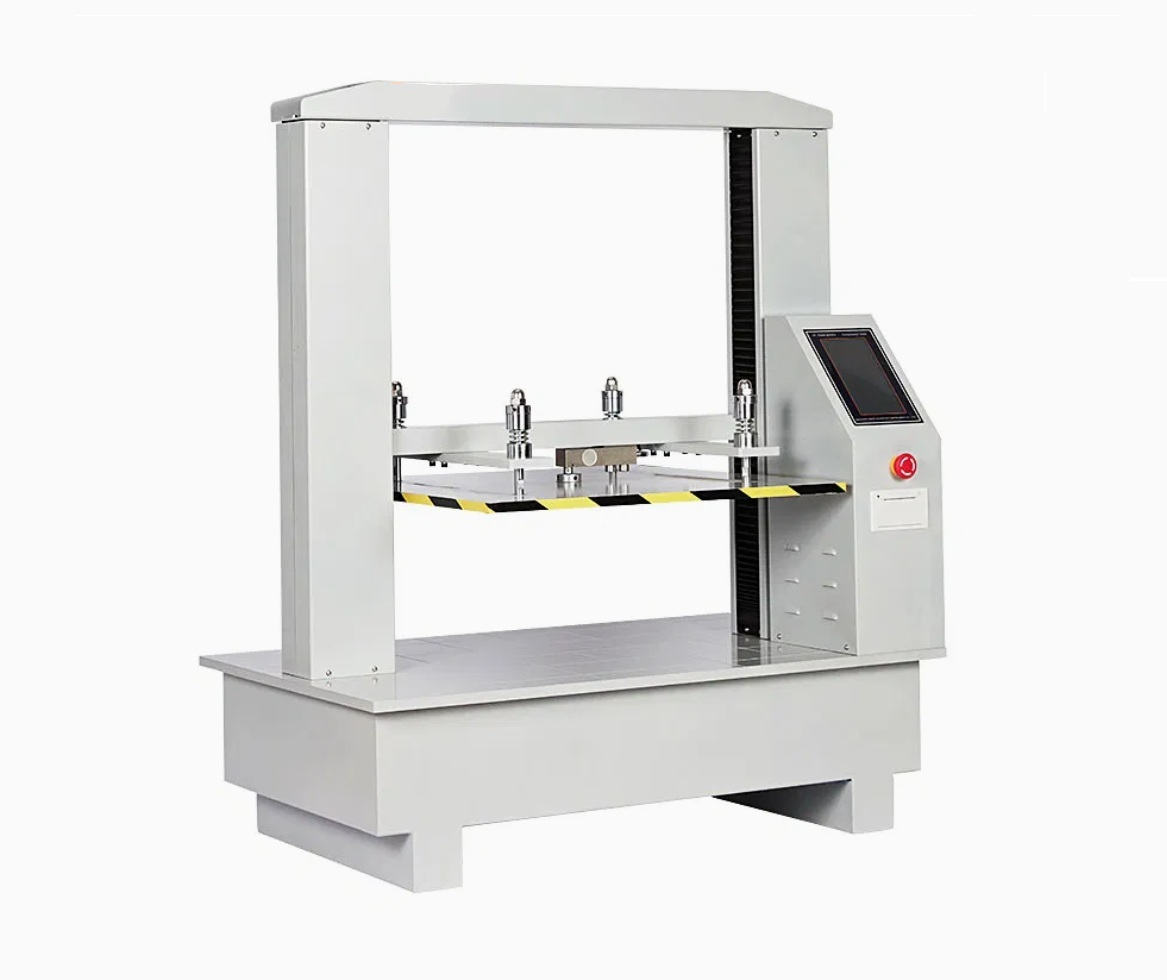

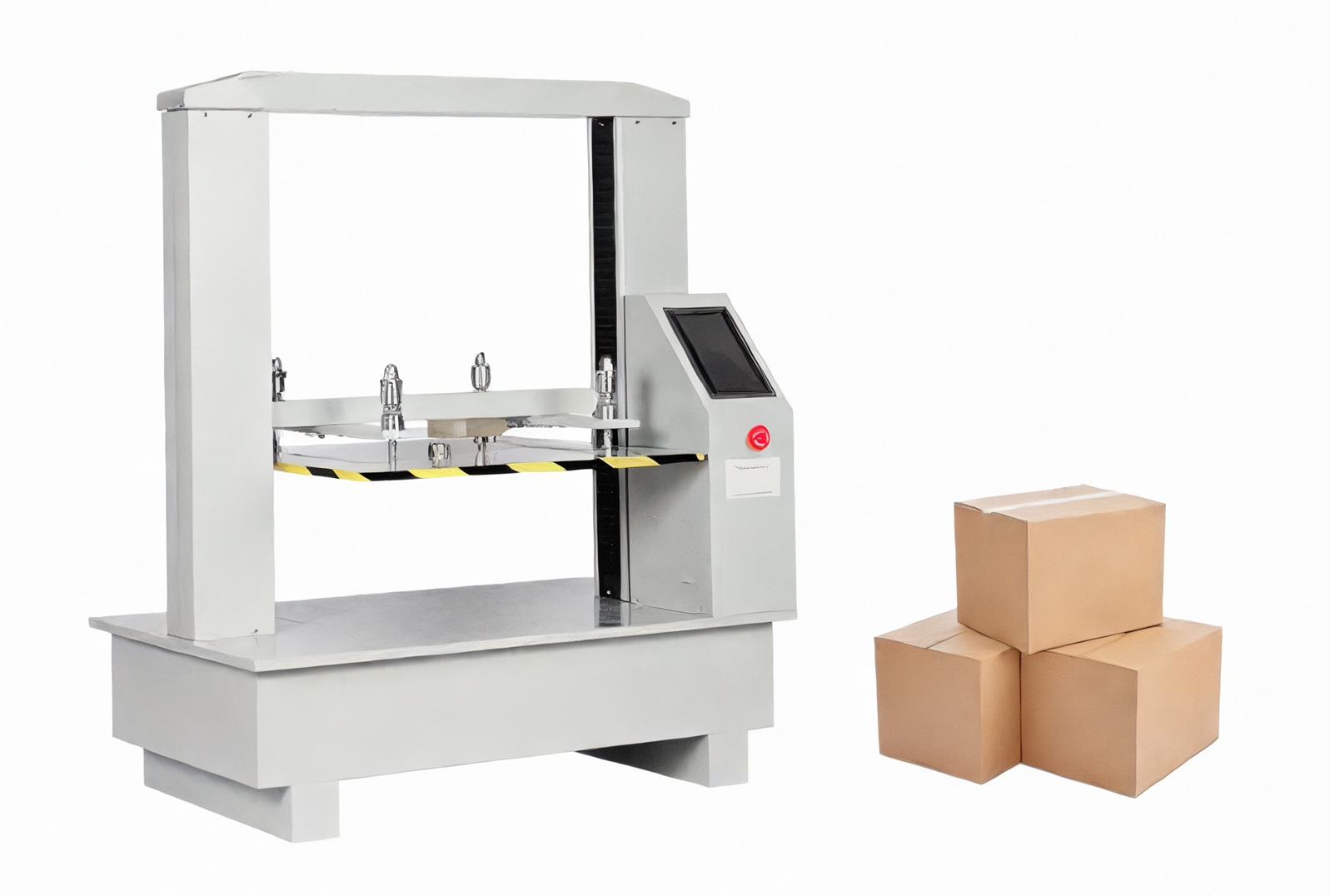

The Carton Box Compression Tester is designed to determine the compressive strength and stacking durability of corrugated boxes, cartons, and packaging materials. It applies a uniform compressive load until the sample collapses, helping evaluate box performance during storage, shipping, and stacking.
Featuring high-precision load cells, rigid test frames, and digital control systems, it ensures accurate, repeatable results for quality assurance and R&D applications.
✨ Key Features
- High-precision load cell for accurate force measurement
- Digital display showing load, displacement, and test status
- Heavy-duty rigid frame prevents deformation during testing
- Automatic overload protection & emergency stop
- Wide test area for various carton sizes
- PC software for data recording and reporting (optional)
- Fully compliant with international packaging standards
🏭 Applications
- Corrugated box compression strength testing
- Packaging material quality control
- Stacking load simulation
- Transportation and storage performance evaluation
- R&D for packaging design optimization
📦 Materials Tested
- Single-wall, double-wall & triple-wall corrugated cartons
- Packaging containers & shipping boxes
- Fiberboard and heavy-duty packing boxes
- Large cartons, printed boxes & export packaging
📏 Test Standards / Compliance
This tester complies with the following standards:
- ISO 12048 – Compression test for complete filled transport packages
- ASTM D642 – Determining compressive resistance of shipping containers
- TAPPI T804 – Compression strength of fiberboard shipping containers
- JIS Z0212 – Packaging—compression test
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Load Capacity | 5 kN – 50 kN (model dependent) |
| Test Space | Up to 1000 × 1000 × 1200 mm (customization available) |
| Load Accuracy | ±1% of reading |
| Compression Plate Speed | 10 – 300 mm/min adjustable |
| Load Cell Type | High-precision strain gauge |
| Display | Digital LCD / Touchscreen |
| Data Output | USB / RS232 (optional PC software) |
| Safety Features | Overload & over-travel protection |
| Power Supply | AC 220V, 50/60 Hz |
📦 What’s Included
- Carton Box Compression Tester main unit
- Compression plates (upper & lower)
- Calibration certificate
- Power cable
- User manual
🛠️ Options & Accessories
| Option / Accessory | Description |
|---|---|
| PC Data Software | Real-time graphing & report generation |
| Larger Test Plates | For oversized cartons |
| High-Capacity Load Cell | For 50 kN or higher force testing |
| Safety Cage | For operator protection |
| Custom Fixtures | For non-standard packaging shapes |
🔍 Sample Requirements
- The box must be assembled and closed properly
- No visible dents, damage, or moisture
- Use conditioned samples (23°C ± 1°C / 50% ± 2% RH recommended)
- Ensure box fits within the test area
❓ Frequently Asked Questions (FAQs)
Q1: Can this tester simulate long-term stacking loads?
Yes, with the “Hold / Stacking Mode”, the machine applies a constant load over time.
Q2: Does it support large cartons?
Yes, models with up to 1200 × 1200 mm test area are available.
Q3: Can results be exported?
Optional PC software allows data export, graphing, and report output.
Q4: What industries use this tester?
Packaging manufacturers, logistics companies, printers, and export packaging facilities.
