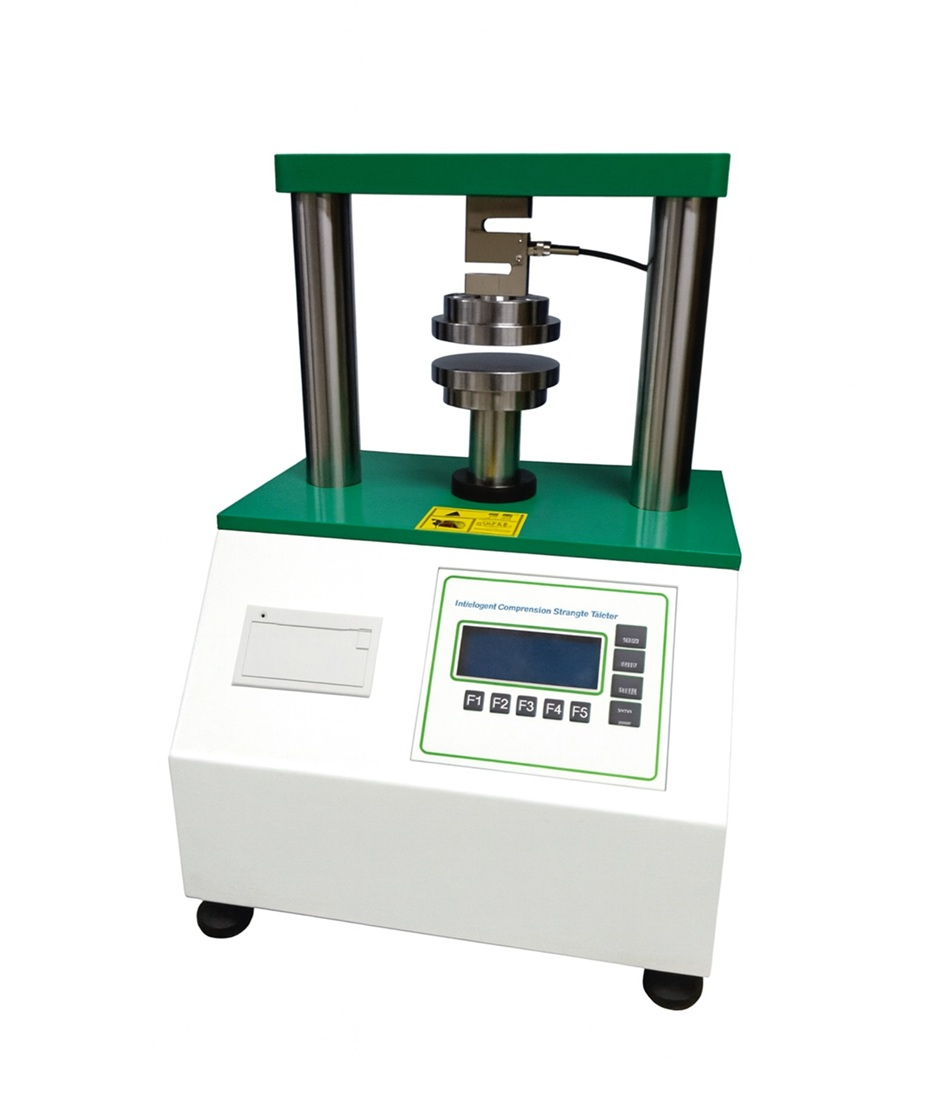

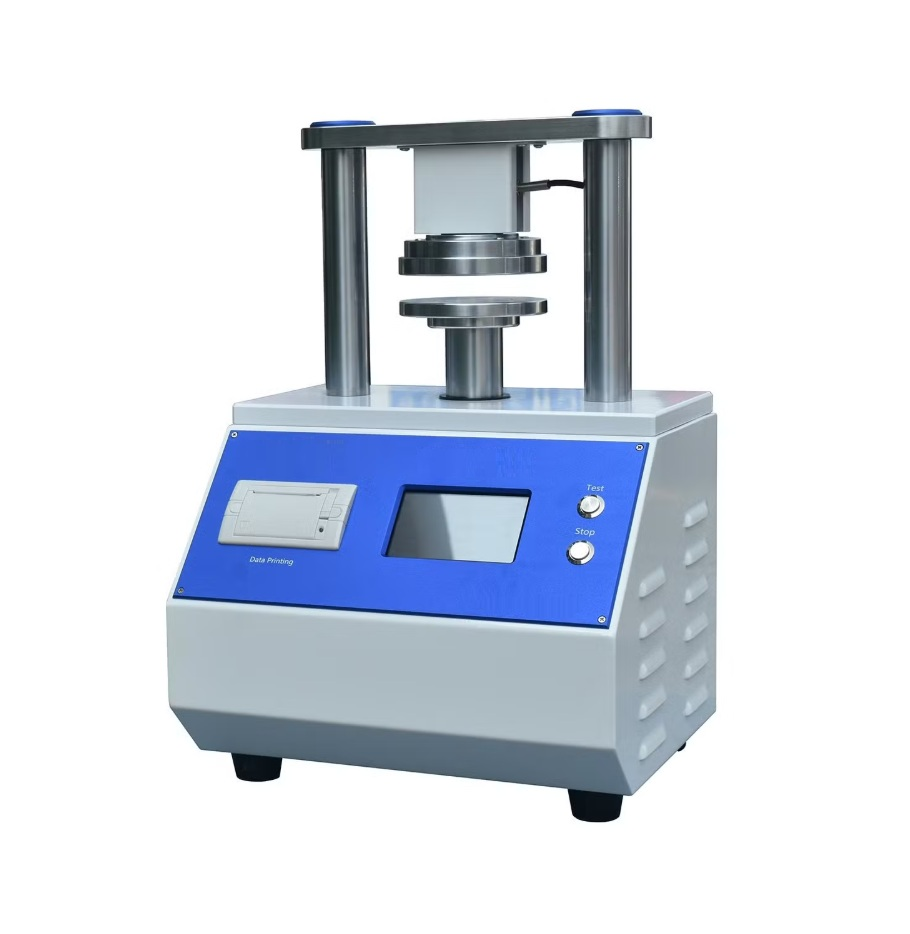

The Ring And Edge Crush Tester is an essential instrument for evaluating the strength of corrugated boards and paper materials. When paired with the appropriate fixtures, this single machine can perform six major tests:

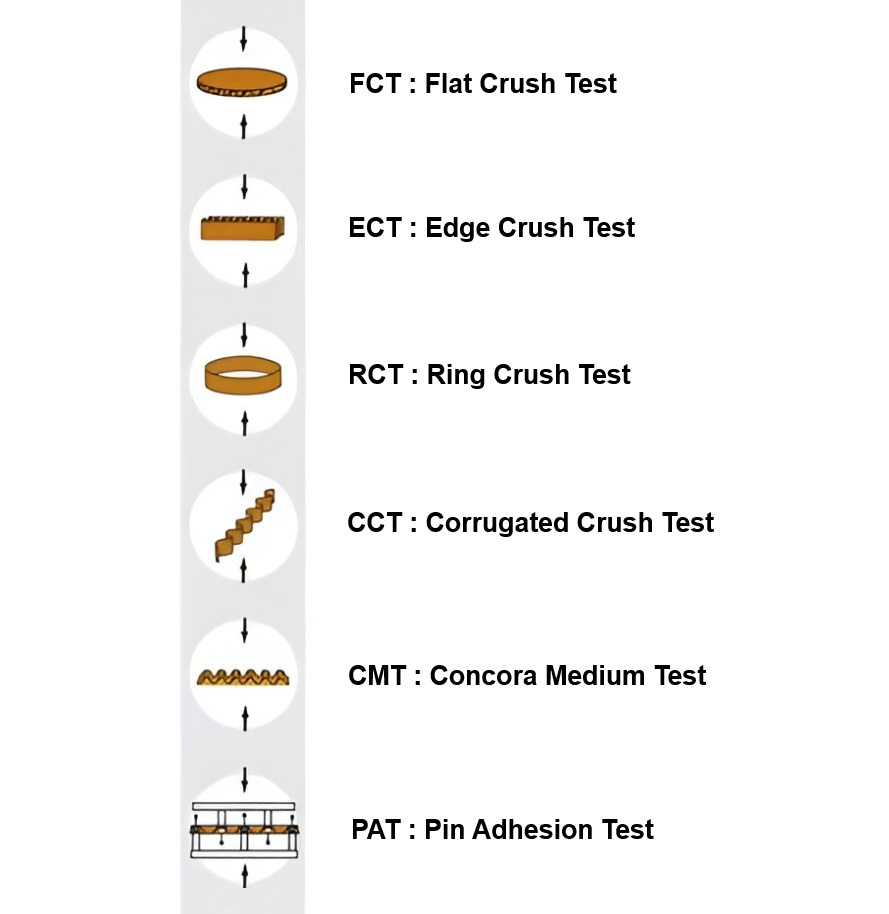

- Ring Crush Test (RCT)
- Edge Crush Test (ECT)
- Flat Crush Test (FCT)
- Concora Medium Test (CMT)
- Corrugated Crush Test (CCT)
- Pin Adhesive Test (PAT)
The tester integrates a high-precision load cell, digital controller, and rigid compression frame to ensure stable, repeatable results—ideal for packaging manufacturers, carton converters, and QC laboratories.
⭐ Key Features
- High-precision load cell with fast sampling
- Automatic peak value detection
- Multi-test functionality through interchangeable fixtures
- Strong, stable compression frame
- Large LCD or touchscreen display
- USB/RS232 computer connectivity (optional)
- Adjustable test speed
- Ergonomic sample loading design
- Compliance with international test standards
🧪 Applications
Used widely in:
- Corrugated carton manufacturing
- Paper mills
- Packaging converters
- Quality control laboratories
- Material research institutes
📦 Materials Tested
- Corrugated board (single, double, triple wall)
- Kraft paper
- Linerboard
- Fluting medium
- Core papers
📏 Test Standards
- ISO 3037 / 12192 / 7263 / 3035
- TAPPI T811 / T839 / T809 / T808
- GB/T 6548, GB/T 2679 standards
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 2 kN |
| Accuracy | ±1% of reading |
| Test Speed | 12.5 mm/min (others optional) |
| Load Cell | High-resolution digital load cell |
| Display | Digital LCD or touchscreen |
| Platen Size | 100 × 100 mm or as required |
| Compression Stroke | 0–70 mm |
| Printer | Built-in thermal printer |
| Power Supply | AC 220V / 50–60Hz |
🎁 What’s Included
- Main Crush Tester unit
- Standard compression platens
- Power cable
- User manual
- Calibration certificate
🔧 Options & Accessories (Correct Fixtures for All Tests)
To perform all required test methods, the following fixtures are paired:
1️⃣ Ring Crush Test (RCT) Fixture
- RCT sample forming ring
- RCT test jig (clamp-style support)
2️⃣ Edge Crush Test (ECT) Fixture
- ECT sample holder (rigid alignment jig)
3️⃣ Flat Crush Test (FCT) Fixture
- FCT fluted medium support plate
- Flat compression platens
4️⃣ Concora Medium Test (CMT) Apparatus
- Corrugating hot-plate unit
- Fluting medium forming tool
5️⃣ Corrugated Crush Test (CCT) Fixture
- CCT sample holder for corrugated board
6️⃣ Pin Adhesion Test (PAT) Fixture
- PAT pin plate & pressure fixture
📄 Sample Requirements
- RCT: 152 × 12.7 mm, conditioned
- ECT: 25 × board thickness
- FCT: 100 × 100 mm
- CMT: Prepared fluted sample
- CCT: Corrugated sample (conditioned)
- PAT: Standardized pin adhesion sample
❓ Frequently Asked Questions (FAQs)
Q1: Can one tester perform all tests?
Yes, as long as you purchase the matching fixtures for each test method.
Q2: Is computer software necessary?
Not required, but recommended for data logging and reporting.
Q3: How often should the tester be calibrated?
Typically once a year or according to your ISO/QA policy.
Q4: Can it test double-wall and triple-wall boards?
Yes, with the correct load capacity model.
