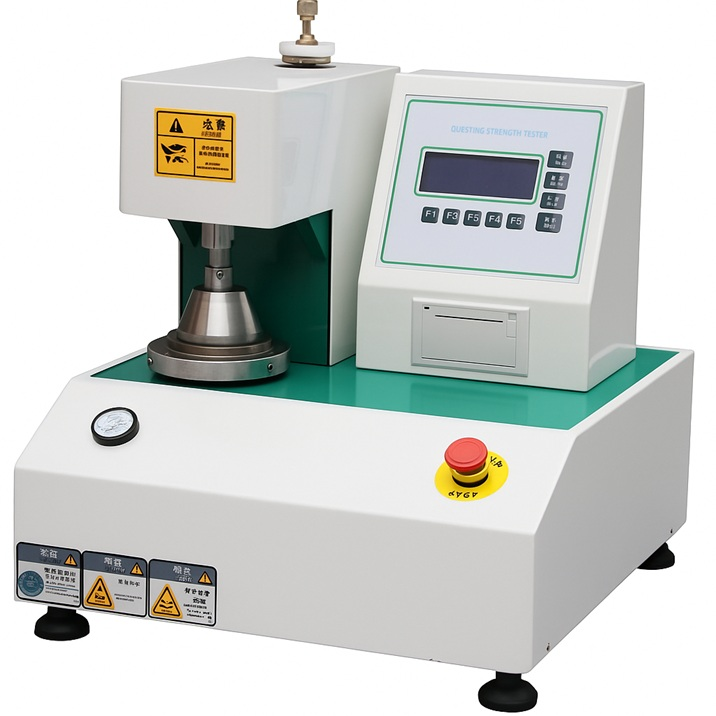

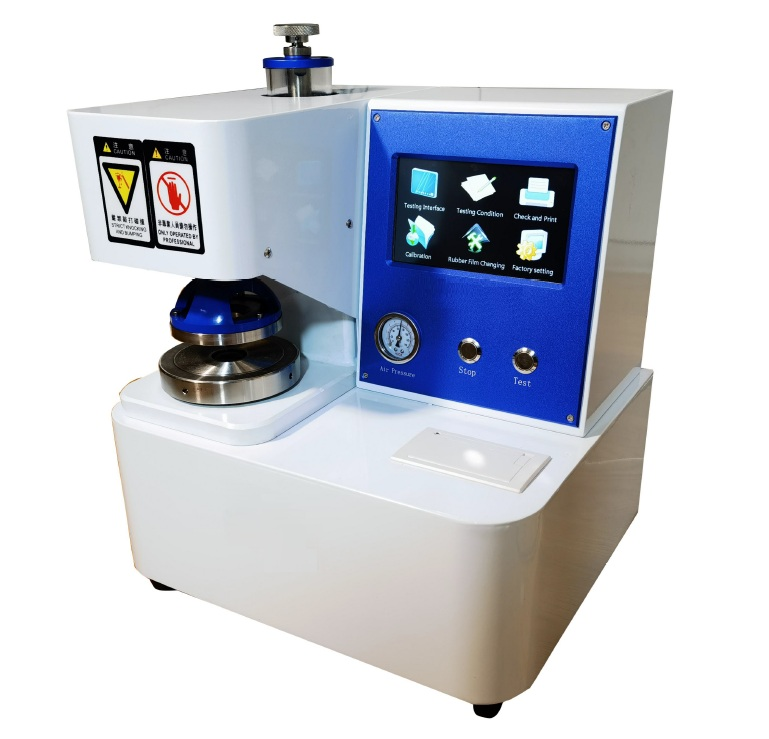

The Digital Bursting Strength Tester is engineered to accurately determine the bursting strength of paper and paperboard materials. It measures the pressure required to rupture a sample when subjected to increasing hydraulic pressure applied via a rubber diaphragm.
Widely used in packaging, printing, and paper manufacturing industries, this tester ensures consistent quality and performance evaluation of paper products like cartons, corrugated boxes, and boards.
✨ Key Features
- Digital display for accurate and clear reading of burst pressure
- Automatic hydraulic pressure build-up and release
- High-precision pressure transducer ensures test repeatability
- Robust clamping mechanism prevents sample slippage
- Built-in safety mechanism for over-pressure protection
- Built-in thermal printer for report documentation
- Complies with ISO, ASTM and TAPPI paper testing standards
🏭 Applications
- Paper and paperboard strength testing
- Quality control in packaging and corrugated box manufacturing
- Evaluation of print and writing paper durability
- R&D testing in paper mills and laboratories
🔧 Materials Tested
- Writing and printing paper
- Kraft paper
- Corrugated fiberboard
- Carton board and linerboard
- Coated and laminated paper
📏 Test Standards / Compliance
Conforms to the following international standards:
- ISO 2758 – Paper – Determination of bursting strength
- ISO 2759 – Board – Determination of bursting strength
- ASTM D774 – Bursting strength of paper
- TAPPI T403 – Bursting strength of paper
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Display Type | Digital LCD or Touchscreen |
| Measuring Range | 50 kgf/cm² |
| Accuracy | ±1% of full scale |
| Pressure Rate | 170L/min |
| Test Fluid | Glycerin (as per ISO/TAPPI standard) |
| Clamp Method | manually or automatic (depend on model) |
| Sample Diameter | minimum 100 mm |
| Power Supply | AC 220V, 50/60 Hz |
| Safety System | Auto pressure release & overload protection |
| Built in Printer | Thermal Compact Printer |
📦 What’s Included
- Digital Bursting Strength Tester (main unit)
- Rubber diaphragm
- Glycerin test fluid (starter pack)
- Power cable and accessories
- Calibration certificate and user manual
🔍 Sample Requirements
- Flat paper or board samples without folds or creases
- Minimum size: 100 × 100 mm
- Standard moisture conditioning: 23°C ± 1°C / 50% ± 2% RH
- Ensure no visible surface defects before testing
❓ Frequently Asked Questions (FAQs)
Q1: What is the purpose of a bursting strength test?
It determines the pressure at which paper or board ruptures — an indicator of its strength and durability.
Q2: Can this tester be used for corrugated board?
Yes, it is suitable for single- and multi-ply board materials.
Q3: Is the instrument calibrated before delivery?
Yes, every unit comes with a factory calibration certificate traceable to ISO standards.
Q4: How often should calibration be performed?
Periodic calibration (typically once a year) is recommended to maintain accuracy.
