The Cutter Press is a robust sample preparation instrument engineered for cutting standardized test specimens from rubber, plastic, leather, foam, and composite sheets. It ensures consistent, repeatable cuts by applying uniform pressure through precision-engineered cutting dies. Commonly used in material testing laboratories, quality control departments, and R&D centers, the cutter press simplifies specimen preparation for tensile, tear, and hardness testing.
✨ Key Features
- Uniform and repeatable cutting force for accurate sample dimensions
- Suitable for rubber, plastic, fabric, leather, foam, and composite materials

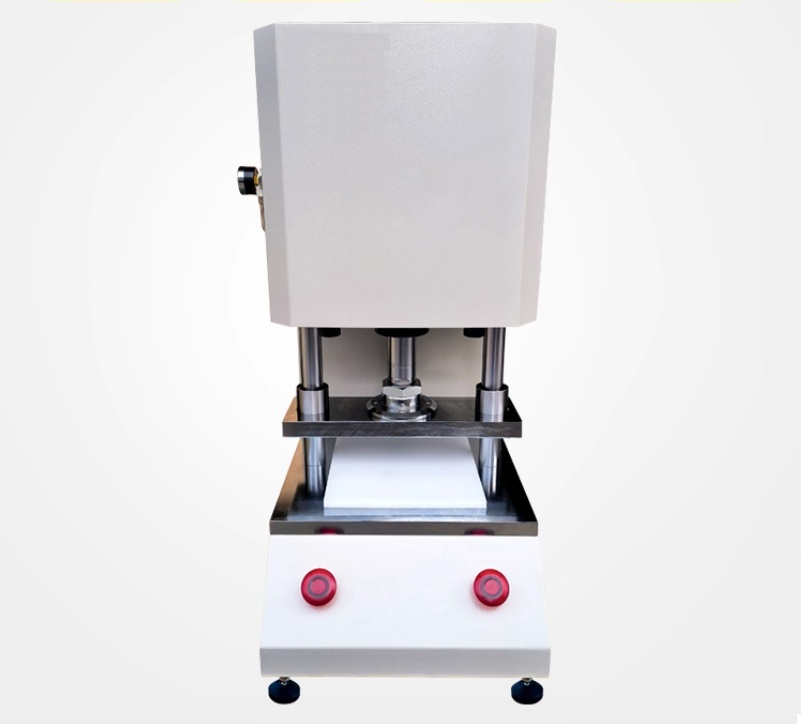

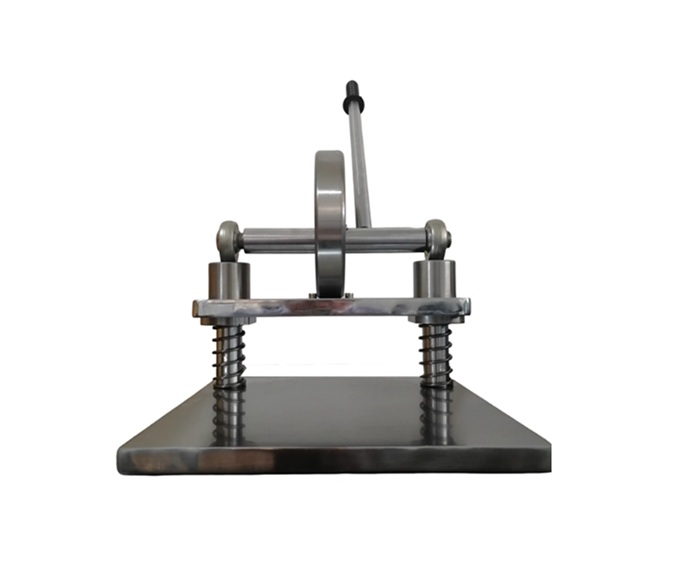

- Manual or pneumatic operation depending on model
- Compatible with various standard test dies (ASTM, ISO, DIN shapes)
- Rugged, heavy-duty frame for stability and durability
- Ergonomic handle and easy operation
- Optional cutting mat to protect die and baseplate
🏭 Applications
- Rubber and polymer testing laboratories
- Quality control sample preparation for tensile or tear tests
- Leather and footwear industries
- Plastics and composites R&D labs
- Educational and research institutions
🔧 Materials / Samples Cut
- Vulcanized and unvulcanized rubber sheets
- Thermoplastic and thermoset materials
- Synthetic and natural leather
- Textile composites and foams
- Paper, cardboard, and laminated samples
📏 Test Standards / Compliance
Supports specimen cutting for:
- ASTM D412 – Tensile Properties of Rubber
- ISO 37 – Determination of Tensile Stress-Strain Properties
- DIN 53504 – Rubber Tensile Test
- ASTM D624 – Tear Strength of Rubber
- ISO 34 – Tear Test Standards
(Standards depend on cutting die selected.)
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Operation Type | Manual or Pneumatic |
| Maximum sample thickness | 5 – 10 mm (depending on model) |
| Cutting Area | 220 × 170 mm |
| Compatible Die Height | 6–12 mm |
| Stroke Length | 30–130 mm (depending on model) |
| Material Compatibility | Rubber, plastic, leather, foam, fabric |
| Frame Construction | Heavy-duty steel |
| Safety Features | Two-hand control or safety guard (pneumatic models) |
| Dimensions | Approx. 350 × 250 × 550 mm |
| Weight | 25–68 kg depending on model |
📦 What’s Included
- Cutter press main unit
- Cutting mat / base plate
- Operating handle or pneumatic control set
- User manual
🛠️ Options & Accessories
| Option / Accessory | Description |
|---|---|
| Pneumatic Cutter Press Model | For faster and effortless operation |
| Cutting Dies (ASTM/ISO Standard) | Various standard specimen shapes available |
| Spare Cutting Mats | Protects die and ensures clean cuts |
| Safety Guard / Two-Hand Switch | For enhanced operator safety |
| Maintenance Kit | For long-term reliability |
🔍 Sample Requirements
- Material sheets should be flat and uniform thickness
- Avoid cutting samples with embedded metal or abrasive particles
- Use appropriate cutting mat and apply even pressure
❓ Frequently Asked Questions (FAQs)
Q1: What is the difference between manual and pneumatic models?
Manual models use a lever system, while pneumatic models operate using air pressure for faster and more consistent cutting.
Q2: Can I use custom cutting dies?
Yes — custom die shapes and sizes can be supplied to meet specific test standards.
Q3: Does it require calibration?
Routine visual and dimensional verification of specimens is recommended but no formal calibration is usually needed.
Q4: What materials can be cut?
Rubber, plastics, leather, foams, fabrics, and other soft sheet materials.
