📌 Overview

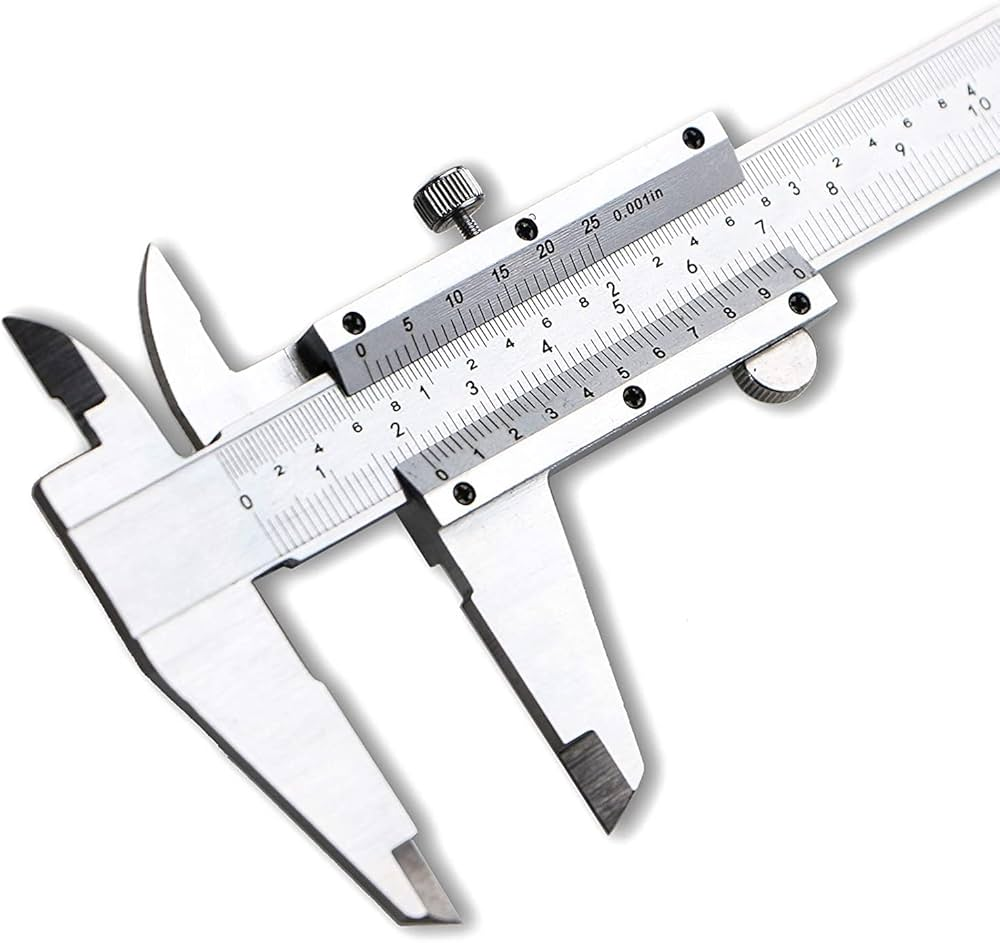

The Vernier Caliper is a precision measuring instrument used to obtain highly accurate internal, external, depth, and step measurements. Designed for laboratory, workshop, production, and quality control environments, it offers reliable measurement performance with minimal user interpretation error. Available in various measuring ranges and materials (stainless steel / carbon steel), it is a staple tool for mechanical, manufacturing, and testing applications.
✨ Key Features
- High-precision scale for accurate dimensional measurements
- Dual reading: main scale and vernier scale for fine resolution
- Measures internal, external, depth, and step dimensions
- Smooth sliding mechanism for consistent measurement
- Clear and easy-to-read engraved graduations
- Durable stainless-steel construction for long service life
- Available in metric, imperial, or dual-unit versions
- Optional digital display version for easier reading
🏭 Applications
- Mechanical component inspection
- Metals and materials testing
- Quality control and production line measurement
- Toolroom and machining operations
- Laboratory dimensional measurement
- Education and training in engineering programs
🔧 Materials Tested / Workpiece Compatibility
- Steel and metal components
- Plastics and polymer parts
- Rubber and elastomers
- Wood and composite materials
- Precision machined parts, fittings, bearings, shafts, and gauges
📏 Test Standards / Compliance
- ISO 3599 – Vernier Calipers
- DIN 862 – Caliper Accuracy Standard
- JIS B 7507 – Vernier Calipers
- ASME B89.1.14 – Precision Measuring Tools
(Compliance may vary by model.)
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|

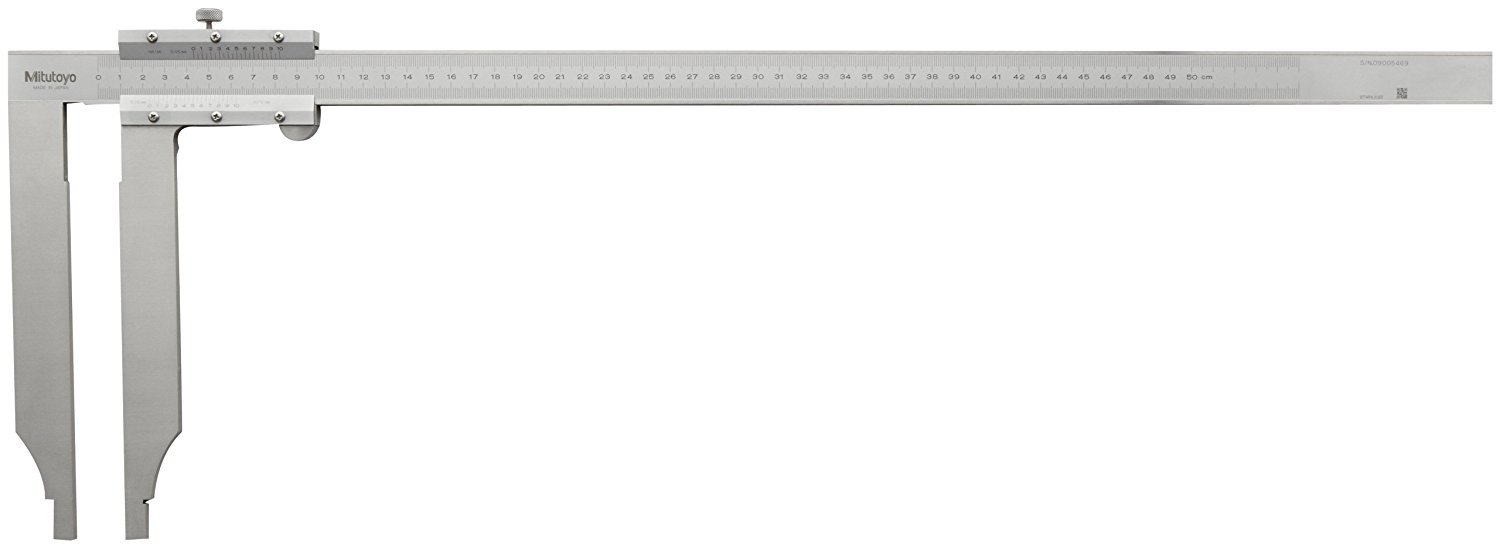

| Measuring Range | 0 – 150 mm (0 – 6 in) (other ranges available: 200 / 300 / 500 / 600 / 800 / 1000 / 1500 mm) |
| Resolution | 0.02 mm or 0.001 in |
| Accuracy | ±0.03 mm (varies by model and range) |
| Material | Hardened Stainless Steel |
| Scale Type | Engraved main scale with vernier scale |
| Jaw Type | Flat measuring jaws for inside & outside measurements |
| Depth Rod | Included |
| Locking Screw | Included |
📦 What’s Included
- Vernier Caliper (selected range)
- Storage case (plastic or wooden)
- Optional calibration certificate
- User guide
🔍 Sample Requirements
No specific sample requirement. Workpieces should be clean and free of burrs or debris for accurate measurement.
❓ Frequently Asked Questions (FAQs)
Q1: What is the difference between Vernier and Digital Calipers?
Vernier calipers require manual reading; digital calipers display measurements electronically.
Q2: How often should the caliper be calibrated?
Typically annually, based on usage and internal QC policy.
Q3: Can this caliper measure depth?
Yes, it includes a depth measurement rod.
Q4: Is stainless steel better than carbon steel?
Stainless steel provides better durability and corrosion resistance.
